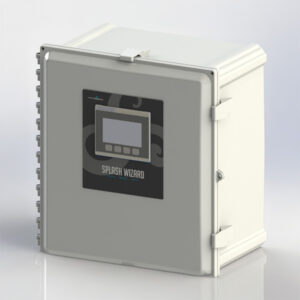

SPLASH WIZARD PLUS

This controller is perfect for dynamic water features like splash pads and dancing fountains.

Specs

  • Touchscreen for user interaction
  • Control for up to 10 valves, 24VAC, up to 6.25A total
  • Motor Starter for 1 pump, 120VAC, up to 32A
  • Input for 2 sensors (activation button, level sensor) 24VDC
  • Control for fill valve, 24VAC
  • 18.75″ W, 12″ D, 19.5″ H
CONTACT US

Description

It offers integrated control, managing up to 10 solenoid valves, a feature pump, inputs for a touch activation sensor and a water level sensor. With the ability to create custom sequences, each project can have unique choreography, from playful splash pad patterns to synchronized fountain shows.

With the use of its intuitive touchscreen, the user has access to programmable run times and sequence selection, ensuring the water feature operates the desired program on a fixed schedule. This combination of flexibility and automation makes it a powerful tool for bringing water features to life.
